| ชื่อแบรนด์: | WESEW |
| เลขรุ่น: | จีน |
| ขั้นต่ำ: | 1 พีซี |
| ราคา: | US$8,000~US$50,000 per pc |
| เงื่อนไขการจ่ายเงิน: | T/T, Western Union |
| ความสามารถในการจําหน่าย: | 10,000 ชุดต่อเดือน |

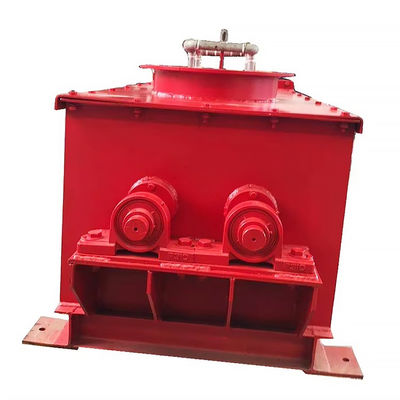

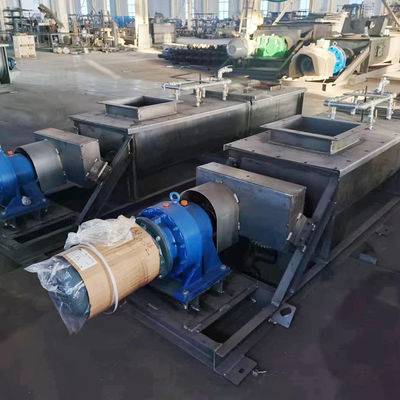

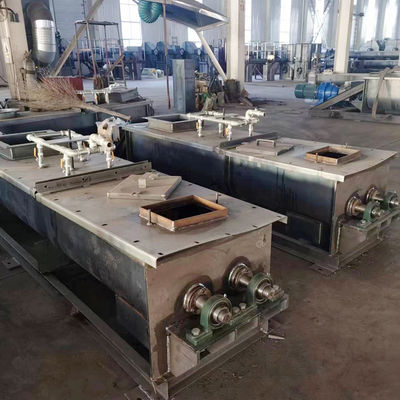

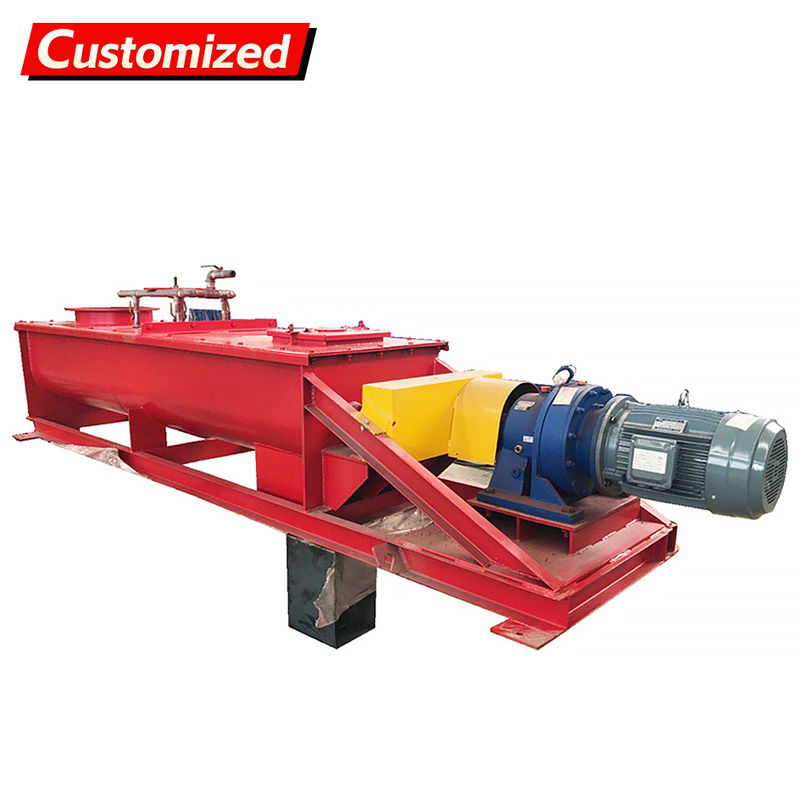

Paddle Mixer Pug Mill Ash Conditioner Dust Humidifier Mixer for Power Plant
| advantages | |
| 1 | A spacious turnaround door makes maintenance easier. |
| 2 | Flexible and reliable complete electrical control system, safe and simple operation. |
| 3 | Excellent shaft seat and seal structure design, not only easy to overhaul, but also completely eliminate the gray water drip. |
| 4 | The watershed structure is adopted at the bottom of the shell, and the remaining ash rate is low to ensure that there is no dead space inside. |

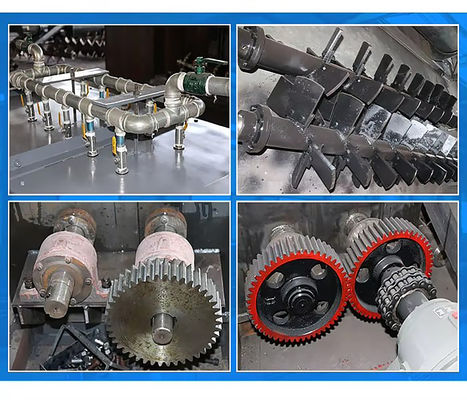

| 5 | Above the blades, there are array nozzles according to the humidifier model and the humidification volume. Each group has dozens of water spray nozzles, and the water spray is even, so that the gray water can be mixed to achieve a good effect. Each set of nozzles is easy to dismantle and facilitates regular inspection and cleaning. |

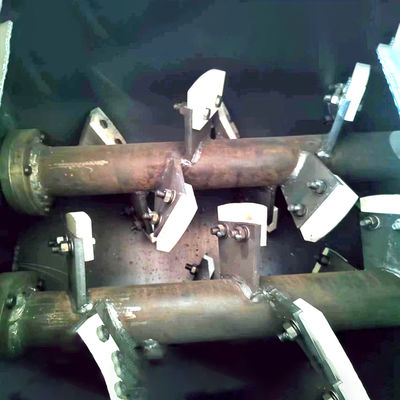

| 6 | The mixing blade made of high alloy wear-resistant electrode is a reliable guarantee for the long service life of the mixer. According to our many years of experience, the reverse vane is used in some places to make the stirring more fully. The two-axis mixer blade produced by our factory adopts screw connection between the blade and the shaft. After the blade is worn, some of the blades are directly replaced. Easy maintenance and low cost. |

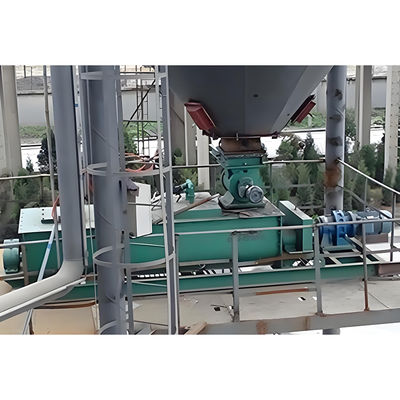

The dust-removing accessories are mainly used for spraying, humidifying, stirring and conveying powdery dry ash of various types of ash storage tanks, so as to meet the requirements of environmental protection and transportation. The product is suitable for humidification, agitation, and transportation of solids-containing materials such as chemicals, mines, power plants, and steel mills.

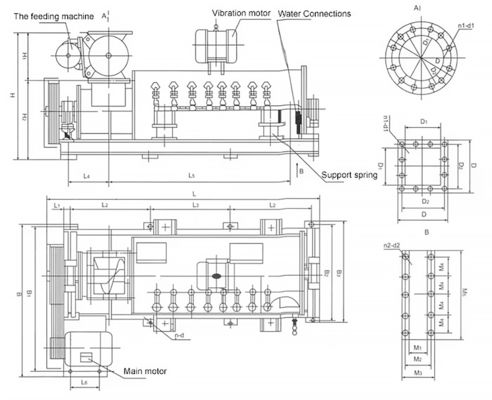

A pair of high-strength stirring shafts are equipped, and a plurality of fan-shaped agitating blades are distributed on the shaft at a certain angle and pitch. The two agitating shafts are rotated in reverse to uniformly humidify the dry ash and convey spirally. Its advantages are high mixing efficiency, tight system sealing and no fly ash. The speed reducer has a compact structure, a small footprint, a smooth transmission, low noise, even stirring, good abrasion resistance, easy operation and maintenance, and reliable operation.
